Key Features/Application：

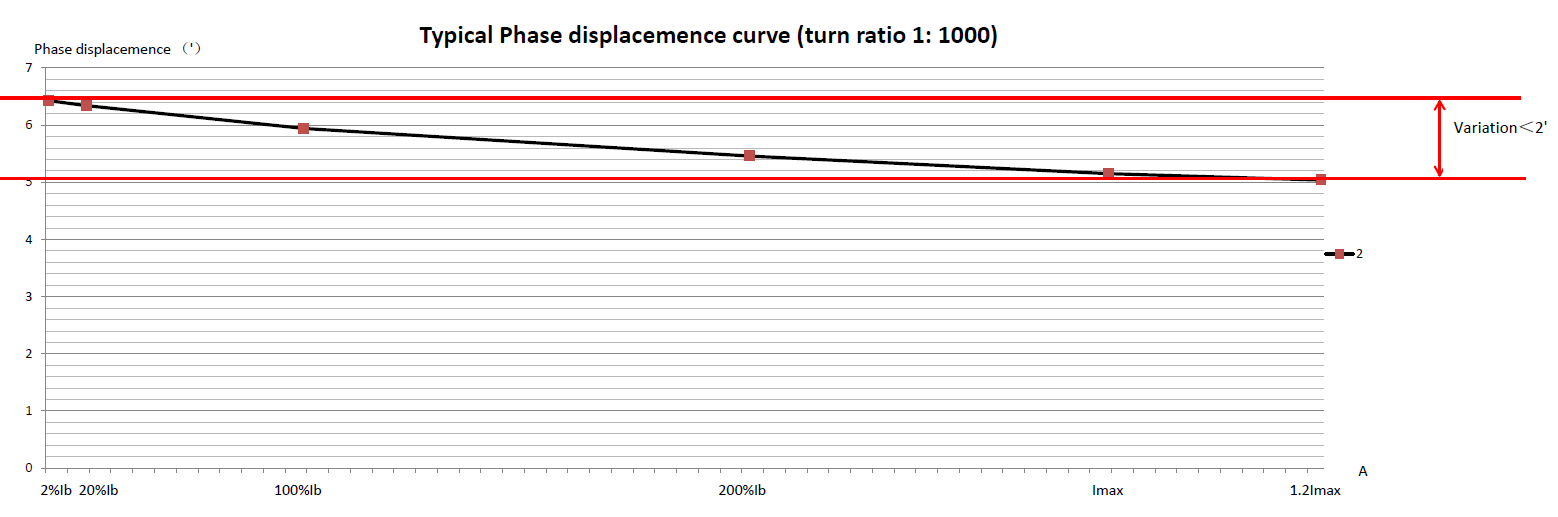

l Suitable for three-phase electric energy meters with high precision and small phase displacement
l Wide linear output current, high precision and good consistency
l Encapsulated with epoxy resin, Power-frequency Withstand Voltages: 4000V 50Hz/1min,
Insulation Resistance: ≥1000MΩ/500Vdc
l Working Frequency: 50Hz/60Hz
l Operating Temperature: -40℃～85℃
l Comply to JB/T10665-2016、IEC61869-2-2012

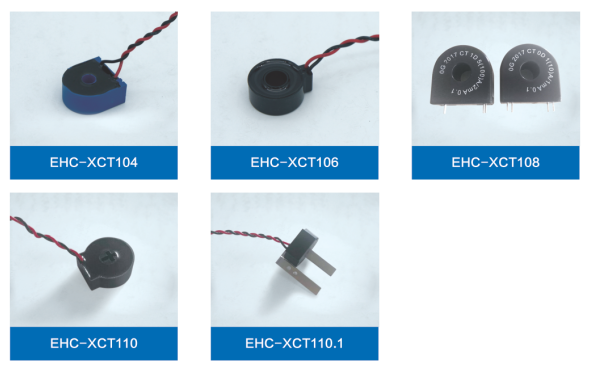

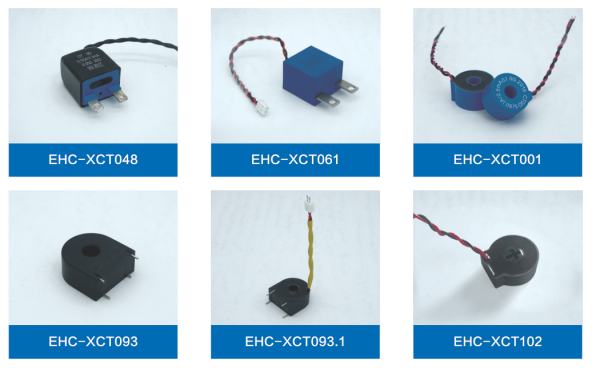

Only few typical products of this series are shown in the following page. EHC is capable of making other customized design and manufacturing per user request.
Specifications：
Model | Current Ratio | Rated Burden（Ω） | Accuracy Class |
0.3(1.2)A/2.5mA | 10 20 | 0.05 0.1 | |
1(6)A/5mA | |||
1.5(6)A/2mA | |||
1.5(6)A/5mA | |||
1.5(10)A/2mA | |||
1.5(10)A/5mA | |||
5(10)A/5mA | |||
1(10)A/0.5mA | |||
1(20)A/0.5mA | |||
1.5(6)A/0.75mA | |||
5(10)A/2.5mA | |||
5(20)A/2.5mA | |||
5(60)A/2.5mA | |||
5(80)A/2.5 mA | |||
5(100)A/2.5 mA |
