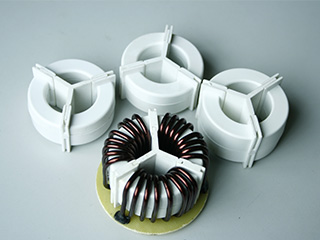

                   				   共模電感鐵芯






                        Features





        Application Field:
          Inverter; inverter (inverter welding machine, photovoltaic inverter) converter; switching power supply; EMC filter; wind power; household appliances;

        Performance characteristics：
        l High saturation magnetic induction;
        l Excellent wide frequency characteristics;
        l Extensive permeability adjustment range;
        l Better anti - unbalanced current capability;
        l Excellent temperature stability (high temperature);
        l Low loss.

        Material properties：
        Saturation magnetic induction  Bs（T）
        1.2
        Coercivity   Hc （A/m）
        <2
        Curie temperature   Tc（℃）
        570
        Crystallization temperature  Tx（℃）
        500
        Lamination factor
        >0.75
        Working temperature℃
        -40～130
        Initial permeability   μi（Br≈0.8T）
        18×104
        Initial permeability   μi（Br≈0.4T）
        10×104
        Initial permeability   μi（Br≈0.1T）
        3×104
        loss P（20kHz，0.5T），（W/kg）
        <20











                        Specifications





        ID－inside diameter,  OD－Outer diameter, HT－h(huán)eight
        lamination factor：0.75
        Can be customized according to customer requirements


        產(chǎn)品型號(hào)
        Product number
        磁芯尺寸
        Core size
        護(hù)盒尺寸
        Case size
        有效
        截面積
        iron cross
        section
        磁路
        長(zhǎng)度
        mean path length
        重量
        weight
        額定電感量
        nominal inductance
        OD x IDx HT
        OD
        ID
        HT
        AFe
        lFe
        mFe
        10 kHz
        100 kHz
        mmxmmxmm
        mm
        mm
        mm
        cm2
        cm
        g
        μH
        HLC-9.8*6.5*4.5
        9.8 x 6.5 x 4.5
        11.4
        5
        6.1
        0.06
        2.6
        1.1
        25.5
        6.4
        HLC-12*8*4.5
        12 x 8 x 4.5
        14.4
        6.6
        7.0
        0.07
        3.1
        1.7
        28
        6.8
        HLC-12.5*10*5
        12.5 x 10 x 5
        14.0
        8.6
        6.7
        0.05
        3.5
        1.3
        10
        3.6
        HLC-16*10*5
        16 x 10 x 5
        18.1
        8.3
        7.3
        0.12
        4.0
        3.6
        27
        6.7
        HLC-15*10*6
        15 x 10 x6
        18.0
        8.4
        9.3
        0.12
        3.9
        3.4
        32
        7.3
        LLC-15*10*6
        15 x 10 x6
        18.0
        8.4
        9.3
        0.12
        3.9
        3.4
        11.7
        6.5
        HLC-19*15*5
        19 x 15 x 5
        21
        13.3
        6.7
        0.08
        5.3
        3.1
        18
        4.4
        HLC-19*15*10
        19 x 15 x 10
        21.1
        13.3
        12.2
        0.16
        5.3
        6.3
        36.1
        8.8
        HLC-20.5*16.5*12
        20.5 x 16.5 x 12
        23.2
        14.7
        15.2
        0.19
        5.81
        7.5
        30.5
        7.9
        HLC-25*20*10
        25 x 20 x 10
        27.7
        18.1
        17.8
        0.2
        7.1
        10
        28.4
        7.3
        HLC-25*15*10
        25 x 15 x 10
        28.1
        13.2
        12.3
        0.4
        6.28
        18
        70
        16
        HLC-25*16*10
        25 x 16 x 10
        27.6
        13.8
        12.6
        0.36
        6.4
        17
        65.5
        15.5
        MLC-25*16*10
        25 x 16 x 10
        27.6
        13.8
        12.6
        0.36
        6.4
        17
        17
        11.5
        LLC-25*16*10
        25 x 16 x 10
        27.6
        13.8
        12.6
        0.36
        6.4
        17
        3.2
        3.1
        HLC-30*20*10
        30 x 20 x 10
        33.1
        17.7
        13.3
        0.4
        7.9
        23
        59.3
        14
        MLC-30*20*10
        30 x 20 x 10
        33.1
        17.7
        13.3
        0.4
        7.9
        23
        15.5
        11.1
        LLC-30*20*10
        30 x 20 x 10
        33.1
        17.7
        13.3
        0.4
        7.9
        23
        2.9
        2.8
        HLC-30*20*15
        30 x 20 x15
        33.6
        17.8
        17.8
        0.57
        7.9
        33
        88
        20
        MLC-30*20*15
        30 x 20 x15
        33.6
        17.8
        17.8
        0.57
        7.9
        33
        15.7
        14.1
        HLC-32*20*10
        32 x 20 x 10
        34.3
        18
        12.9
        0.48
        8.1
        27
        65
        12
        HLC-40*32*15
        40 x 32 x 15
        44.9
        28.6
        18.8
        0.46
        11.3
        38
        47.2
        11.1
        MLC-40*32*15
        40 x 32 x 15
        44.9
        28.6
        18.8
        0.46
        11.3
        38
        13
        8.4
        LLC-40*32*15
        40 x 32 x 15
        44.9
        28.6
        18.8
        0.46
        11.3
        38
        2.3
        2.2
        HLC-40*25*15
        40 x 25 x 15
        43.9
        21.5
        18.7
        0.86
        10.2
        64
        101
        23.1
        MLC-40*25*15
        40 x 25 x 15
        43.9
        21.5
        18.7
        0.86
        10.2
        64
        25.4
        17.2
        HLC-45*30*15
        45 x 30 x 15
        48.5
        26.7
        17.8
        0,86
        11.8
        74
        87.5
        20.3
        MLC-45*30*15
        45 x 30 x 15
        48.5
        26.7
        17.8
        0,86
        11.8
        74
        24.3
        15.9
        HLC-50*40*20
        50 x 40 x 20
        53.6
        37.1
        23.1
        0.76
        14.1
        79
        45.3
        14
        MLC-50*40*20
        50 x 40 x 20
        53.6
        37.1
        23.1
        0.76
        14.1
        79
        18
        10
        HLC-59*40*20
        59 x 40 x 20
        63.7
        36.8
        24.4
        1.52
        15.5
        165
        80
        20
        HLC-65*50*25
        65 x 50 x 25
        68.2
        46.5
        28.5
        1.5
        18.0
        190
        58.6
        18.1
        MLC-65*50*25
        65 x 50 x 25
        68.2
        46.5
        28.5
        1.5
        18.0
        190
        23.3
        13.5
        MLC-90*60*20
        90 x 60 x 20
        93.5
        55.1
        24.5
        2.28
        23.6
        400
        32.5
        21.1
        HLC-102*76*25
        102 x 76 x 25
        107.3
        59.6
        30.4
        		2.47
        		2850868.821.6
        MLC-160*130*25
        160 x 130 x 25
        		168.6125.530.22.4745.691726.813.7










                        Characteristic curve

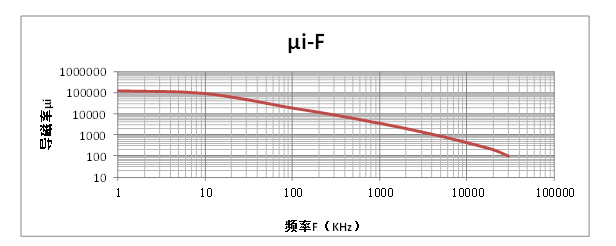

                                              Permeability - frequency   curve

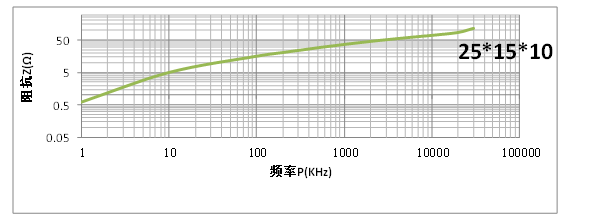

                                           Impedance - frequency curve

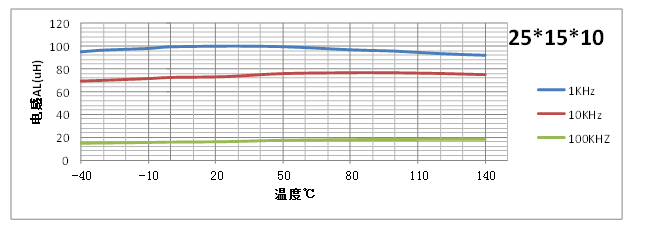

                                         Inductance -temperature  curve

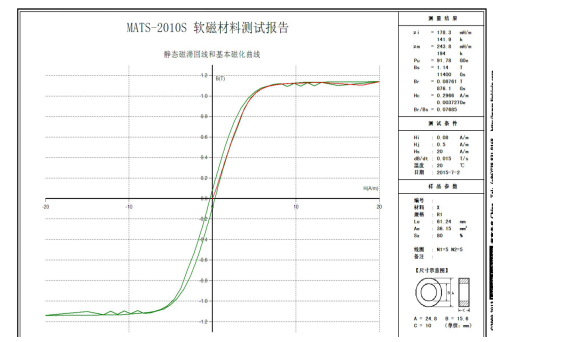

                                          hysteresis loop










        model共模電感鐵芯


        Common mode inductor core

                Download
