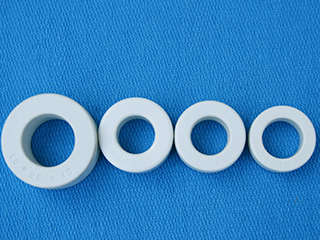

Applications: instrumentation with high-precision current transformers, protection with current transformers and filter inductors and so on.
Material properties：
Saturation magnetic induction Bs（T） | 1.20 |
Coercivity Hc （A/m） | <2 |
Curie temperature Tc（℃） | 570 |
laminating factor | >0.75 |
Strip thickness (mm) | 0.025～0.035 |
Operating temperature （℃） | -55～130 |
Initial permeability μi | >18×104 |
ID－inside diameter, OD－Outer diameter, HT－h(huán)eight
lamination factor：0.75
Can be customized according to customer requirements
產(chǎn)品型號(hào) Product number | 磁芯尺寸 Core size | 護(hù)盒尺寸 Case size | ||
OD×ID×HT | OD | ID | HT | |
mm×mm×mm | mm | mm | mm | |
19*14*8 | 22.8 | 12 | 10.4 | |
22*17*10 | 24.5 | 15.3 | 12.5 | |
23*16*8 | 24.9 | 14.1 | 10.9 | |
21*14*8 | 23.1 | 12.4 | 10 | |
21*15*10 | 23.6 | 12.9 | 12.4 | |
20*14*10 | 22.7 | 12.1 | 11.8 | |
25*19*10 | 27.5 | 17.0 | 12.8 | |
21*16*10 | 23.9 | 13.6 | 12.7 | |
21*16*10 | 24.9 | 14 | 12.2 | |
24*18*10 | 27 | 16 | 12.6 | |
23*17*12 | 25.1 | 14.9 | 14.4 | |
25*17*10 | 28 | 15.4 | 13.1 | |
23*15.5*10 | 25.3 | 13.9 | 12.7 | |
25*16*8 | 27.6 | 13.7 | 10.6 | |
26*19*10 | 28.2 | 16.9 | 12.8 | |
25*16*10 | 27.6 | 13.8 | 12.6 | |
38*27*8 | 40.9 | 25.3 | 11.1 | |
26*16*10 | 28.3 | 14.1 | 12.8 | |
27*19*8 | 29.3 | 16.8 | 9.7 | |
30*20*8 | 32.8 | 18.1 | 9.8 | |
25*18*12 | 27.8 | 16.3 | 14.3 | |
32*20*10 | 34.4 | 18 | 12.9 | |
33*23*15 | 35.8 | 21.1 | 18 | |
Note: The above data is for reference only, the actual data is subject to the finished product

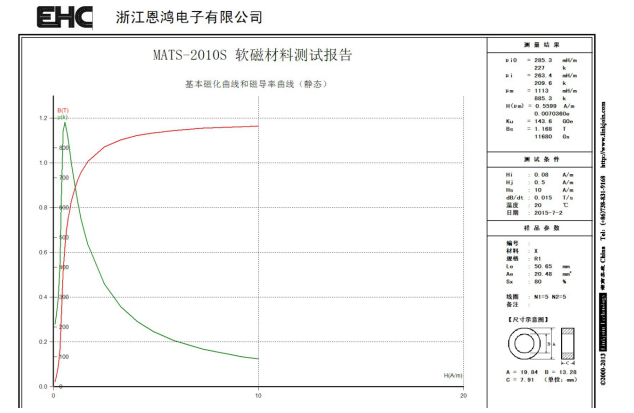

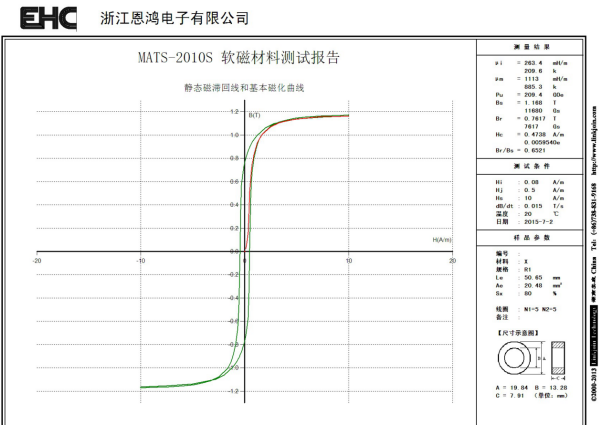

hysteresis loop
